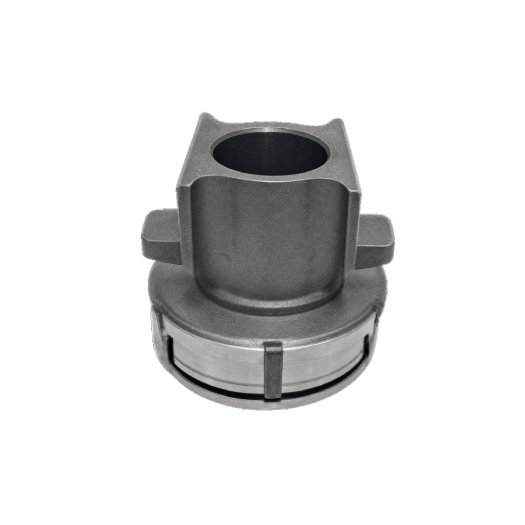

101.68 – AC

REF COMPONENTS:

•     500.68 – Bearing for Roll. K.S.W.
•     102.35 – 112mm mug
•     102.47- Wave Spring
•     102.14 – Roll. K.S.W.
•     102.04 – 3-claw lock kit
•     102.48 – Optional lock kit (with smooth ring)

APPLICATION:

•     AGRALE MA 15.0 APE 2006 – ALL
•     AGRALE MA 15.0 MNM 4.12 TCAE – EURO 3 UNTIL 2002
•     CLUTCH – EATON
•     EXCHANGE WITH MORINGA
•     FORD CARGO TRUCK 1421, 1422, 1521, 1621, 1622, 1721, 1722, 1722 e, 2322 ,2421, 2422 6×2, 2422e, 3222, 1215, 1117, 1217, 1218, 1317,     1317e, 1415, 1416, 1417, 1418, 1419, 1517, 1517e, 1519 (EXCEPT SERIES EURO 5), 1615, 1617, 1618, 1619, 1717, 1717e, 2217, 2218,02219, 2319, F 12000 – 160CV / F 14000 – 160CV / F 16000 – 210CV – 08/2002…
•     CLUTCH – EATON
•     EXCHANGE WITH MORINGA
•     GENERAL MOTORS GMC – 12170 / 14190 / 15190 / 16220 JULY /2000
•     CLUTCH – EATON – SHIFT WITH MORINGA
•     VOLKSWAGEN TRUCK VW 14200 / 14200 BT / 14210 / 14220 / 16200 / 16210/ 16220 / 17210 / 17220 / 23210 / 23220 – ALL – 17220 TRACTOR 12170 / 12170 BT / 12180 / 13150 13170 E /13190 / 14170 /14170 B/ 14180 / 14190 / 15170 / 15170 E / 15190 / 16170 /16170 BT/16180
•     EXCEPT CONSTELLATION SERIES – 13180 and 17180 – WORKER
•     CLUTCH – EATON – SHIFT WITH MORINGA
•     VOLVO VM 210 – 4×2/6×2 – ALL – VM 220 – 4×2 – 2012…
•     VOLVO VM 260 – 4×6/6×2 – ALL
•     TRUCK VM 17 – 208 HP / VM 23 – 240 HP – ALL

PLATE Ø:

•     365mm
